The Orbisphere M1100 sensor is a luminescent dissolved oxygen (DO) sensor designed for precise inline measurement of low oxygen concentrations up to 2 ppm. It is engineered for beverage production and process monitoring where reliable low‑level DO readings are critical.
On order

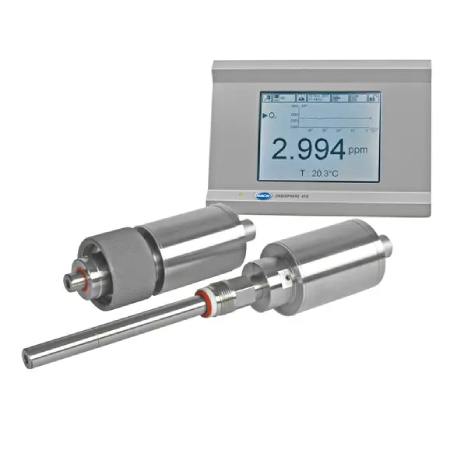

M1100‑S00 Orbisphere M1100 Luminescent Dissolved Oxygen Sensor 0‑2 ppm with 28 mm Orbisphere Fitting
M1100-S00
Orbisphere
Description
The Orbisphere M1100 Luminescent Dissolved Oxygen Sensor (Part Number M1100‑S00) is an optical sensor designed for continuous inline measurement of dissolved oxygen at low concentrations up to 2 ppm. It employs advanced luminescent technology, eliminating the need for membranes and electrolytes to reduce maintenance and ensure long‑term stability. Mechanical robustness and resistance to Clean‑In‑Place (CIP) processes offer extended operational life and reliable performance in beverage production and process water monitoring.
Advantages M1100‑S00
- Minimal drift with long calibration interval — M1100‑S00
- Luminescent optical technology with no membrane or electrolyte degradation — M1100‑S00
- High precision measurement down to ppb levels — M1100‑S00
- Fast measurement frequency for responsive process control — M1100‑S00
- Robust construction designed for CIP resistance — M1100‑S00
- Suitable for inline beverage and process applications — M1100‑S00
Usage Instructions

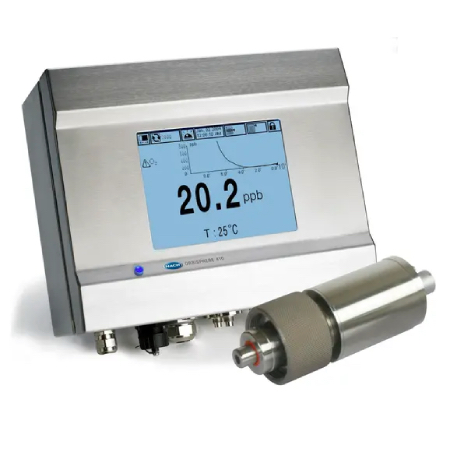

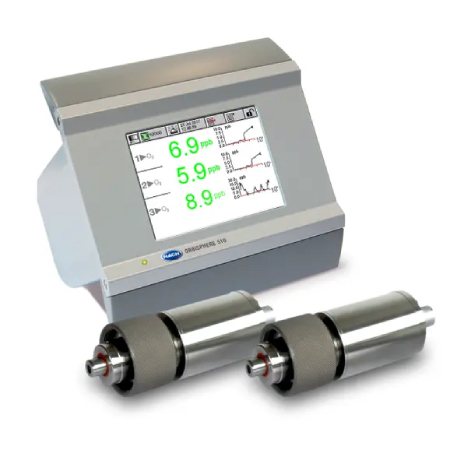

Install the M1100‑S00 sensor into the corresponding Orbisphere analyzer or controller according to the manufacturer’s mounting instructions. Perform a single‑point zero calibration using high‑purity oxygen‑free gas (e.g., 99.999 % nitrogen). Regular weekly CIP procedures help maintain accuracy without frequent recalibration. Follow specific cleaning, calibration, and storage guidelines in the official Hach documentation.
Technical Specifications
| Parameter | Specification |
| Measuring Range | 0 – 2000 ppb DO (0 – 2 ppm equivalent) |
| Accuracy | ± 0.8 ppb or ± 2 % (whichever greater) |
| Lower Detection Limit | 0.6 ppb |
| Repeatability | ± 0.4 ppb or ± 1 % |
| Reproducibility | ± 0.8 ppb or ± 2 % |
| Display Resolution | 0.1 ppb |
| Response Time (90 %) | <10 s gas phase / <30 s liquid phase |
| Fitting | 28 mm Orbisphere fitting |
| Operating Temp Range | Accurate from ‑5 °C to 50 °C; resistant to ‑5 °C to 100 °C |
| Flow Rate | 50 – 300 mL/min |
| Sample Pressure | 1 – 20 bar absolute |
| Material (Wetted) | 316 L Stainless Steel, Silicone |
| Certifications | 2004/108/EC, EN 61326‑1 |
| Weight (28 mm) | 0.74 kg |
| Included with Sensor | Sensor only; controller, cable, flow chamber or process connection ordered separately |
| Brand | Orbisphere |
