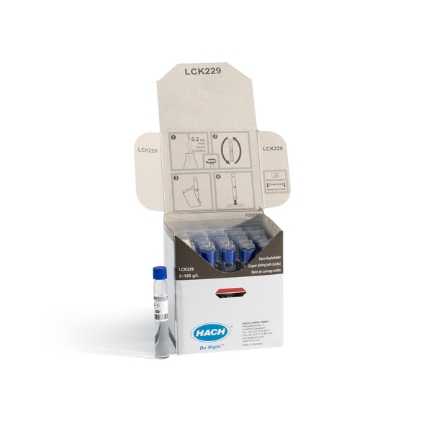

LCK Reagent Set measures acidic copper in acidic copper plating baths.
13mm LCK229 Cuvette test measures 2-100 g/L Cu acidic copper plating baths. The product uses intrinsic bath colour method. LCK229 reagent kit may be used for analysis of up to 25 tests. The product is required to be evaluated using one of the following spectrophotometers: DR3900, DR6000, DR1900, DR2800, DR3800 and DR5000.
Add 0.2 mL of sample in the cuvette. Close the cuvette and invert it several times. Clean the outside of the cuvette and evaluate the sample using Hach spectrophotometer. Insert the cuvette into the cell holder of the instrument, select the test and push READ. The blue coloration of the dissolved copper ions is photometrically evaluated. The results of the analysis must be subjected to plausibility checks. Review the Safety Data Sheets (MSDS/SDS) and expiration date. Use the recommended personal protective equipment.
LCK229 reagent set storage conditions are 15-25 °C.
| Brand | Hach |
| Parameter | Copper Acidic |
| Measuring range | 2-100 g/L Cu |
| Instrument | DR3900, DR6000, DR1900, DR2800, DR3800 and DR5000 |
| Method | Intrinsic Bath Colour method |
| Digestion required | No |
| Number of tests | 25 tests |
| Storage conditions | 15 °C - 25 °C |
