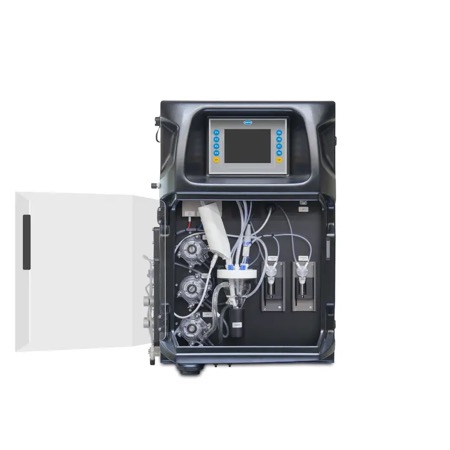

EZ5004 Hach Total Hardness & Total Alkalinity Analyzer

The EZ5004 (Part No. EZ5004) is a high-performance volumetric analyzer that automates complex laboratory titration procedures for continuous online use. It utilizes a dual-method approach: acid-base titration to measure Total Alkalinity and Calmagite EDTA titration with an integrated LED dipping probe to determine Total Hardness. This combination allows for a complete assessment of the water's chemical scaling and buffering characteristics. The system is managed by an industrial panel PC with a touchscreen interface, controlling automated cleaning, priming, and validation cycles to ensure maximum uptime and analytical integrity. Housed in a durable IP44-rated cabinet, the analyzer’s modular design supports multi-stream analysis, enabling the monitoring of up to 8 separate sample lines. The physical separation between the wet chemistry and electronic components ensures long-term reliability and safety in demanding industrial environments.

Advantages

• Multi-Parameter Efficiency: Monitors both Total Hardness and Total Alkalinity in one unit, reducing installation space and total cost of ownership.
• High Analytical Precision: Employs professional-grade volumetric titration and optical endpoint detection to deliver results consistent with laboratory standards.
• Reduced Manual Intervention: Smart automatic features for self-cleaning and validation minimize maintenance requirements and prevent cross-contamination.
• Scalable Stream Monitoring: Capable of sequential sampling for up to 8 streams, maximizing the utility of a single analyzer across different process stages.
• Industrial Connectivity: Easily integrates into plant control systems via 4-20 mA analog outputs or optional digital communication protocols like Modbus TCP/IP.
• Transparent Process Monitoring: The ergonomic cabinet features a transparent door for instant visual inspection of the analysis vessel and reagent levels.

Instructions for use

The EZ5004 is designed for autonomous online operation once integrated into the water process. Preparation: Ensure a constant supply of demineralized water for automated rinsing. Connect the sample inlet (flow rate 100 - 300 mL/min) and install the necessary reagents: Acid titrant, Buffer solution, Calmagite indicator, and EDTA titrant. Note: Configure the measurement frequency and alarm limits via the touchscreen interface. The analyzer will automatically draw a sample, perform the sequential titrations, and display the calculated concentrations in mg/L CaCO3. Data is recorded in the internal logger and transmitted via the selected output modules. Routine maintenance is typically scheduled every 6 months to inspect pump tubing and the optical dipping probe.
