Class C Pyranometer for precise measurement of global solar irradiance, compliant with ISO 9060 and WMO standards. Features direct microvolt (uV) output, WRR-traceable calibration, and spectral flatness for meteorological, agricultural, and solar energy applications. Ideal for solar panel monitoring and weather networks.

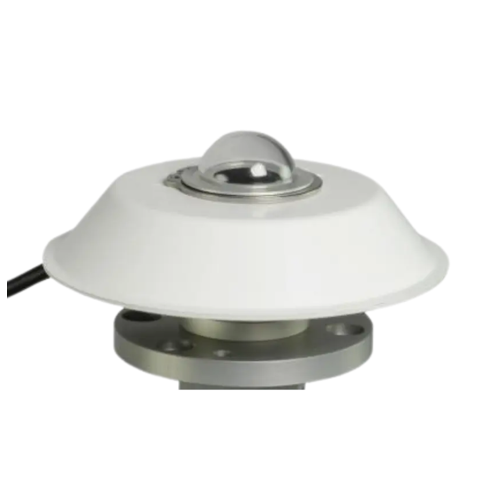

SKU: DPA053A | Product: Class C Pyranometer (ISO 9060:2018)
Class C Pyranometer for precise measurement of global solar irradiance, compliant with ISO 9060 and WMO standards. Features direct microvolt (uV) output, WRR-traceable calibration, and spectral flatness for meteorological, agricultural, and solar energy applications. Ideal for solar panel monitoring and weather networks.
Accurate Solar Radiation Measurement
The DPA053A Class C Pyranometer delivers reliable global irradiance data for professionals in meteorology, agriculture, and renewable energy sectors. Engineered to ISO 9060:2018 standards and WMO No.8 guidelines, this spectrally flat sensor captures both direct and diffuse solar radiation across typical atmospheric conditions. Its robust design ensures consistent performance in outdoor environments, making it essential for solar farm efficiency analysis, crop management systems, and climate research stations.
Optimized for Energy Applications
Specifically developed for solar energy monitoring, this pyranometer enables precise performance evaluation of photovoltaic systems. The sensor's calibration directly references the World Radiometric Reference (WRR), providing the accuracy required for financial-grade energy reporting. Its low-maintenance design operates continuously in temperatures from -40°C to +80°C, delivering critical data for energy yield optimization and system fault detection.
Key Features and Benefits
- ISO 9060:2018 Class C (Second Class) compliant with WMO standards
- IEC 61724-1:2017 certified for photovoltaic system monitoring
- WRR-traceable factory calibration with certificate
- Direct analog output (µV) from thermopile sensing element
- Spectrally flat response across 300-3000 nm wavelength range
- Weather-resistant housing for permanent outdoor installation
Installation and Operation Guidelines
- Mount horizontally on stable platform using included leveling adapter
- Clean dome monthly with distilled water and soft cloth
- Verify calibration annually against reference instrument
- Connect to datalogger with high-impedance input (>1MΩ)
- Maintain clear line-of-sight to sky hemisphere
- Apply temperature compensation coefficients for critical measurements
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | DPA053A |
| Classification | ISO 9060:2018 Class C (WMO Secondary Standard) |
| Spectral Range | 300 to 3000 nm |
| Output Signal | Analog (µV) |
| Calibration | WRR Traceable |
| Compliance | IEC 61724-1:2017 |
| Operating Range | -40°C to +80°C |
| Response Time | <18 seconds (95% response) |
| Zero Offset | ±10 W/m² (thermal gradient 5K/hr) |
| Applications | Meteorology, Agrometeorology, PV Monitoring |
| Brand | LSI-Lastem |
