Compact all-in-one weather sensor integrating ultrasonic wind measurement, air temperature, relative humidity, and barometric pressure in a single body. Reliable, low-maintenance, and IP65-protected, ideal for smart buildings, environmental monitoring, and smart city applications.

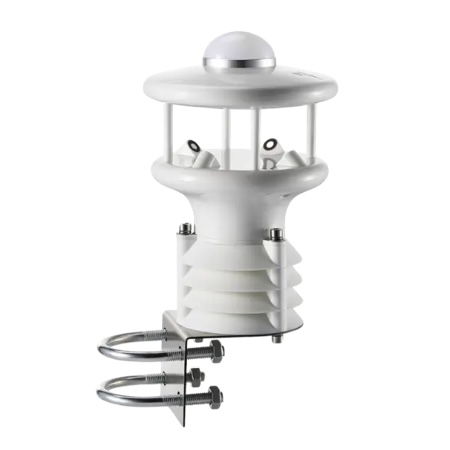

The DNB200 is a professional-grade compact weather sensor that combines multiple measurements in one device. Equipped with an ultrasonic wind sensor, multi-element temperature sensor, fast-response capacitive humidity sensor, and state-of-the-art barometric pressure sensor, it ensures reliable, long-term performance in industrial and environmental monitoring applications.
Applications
DNB200 is suitable for a wide range of applications including smart buildings, coastal area monitoring, smart grids, and smart cities. With no moving parts, compact size, and low visual impact, it is particularly effective where reliability, durability, and easy installation are required.
Design and Installation
The sensor is built with a robust plastic housing and protected to IP65 standards. It connects via RS485 with Modbus-RTU protocol for easy integration into third-party and LSI LASTEM data loggers. Quick mounting on standard poles (Ø 35...50 mm) makes installation straightforward, while low power consumption ensures cost-efficient operation.
Main Advantages
- All-in-one design: wind speed, direction, temperature, humidity, and pressure
- Ultrasonic wind measurement with high accuracy and no moving parts
- Compact, lightweight, and robust plastic housing (IP65)
- Fast-response sensors for real-time monitoring
- Easy integration via RS485 Modbus-RTU
- Low power consumption for continuous operation
Usage Guidelines
- Mount on a pole (Ø 35...50 mm) using the included bracket
- Ensure unobstructed exposure to wind and weather for accurate readings
- Connect via RS485 (Modbus-RTU) to LSI LASTEM or third-party data loggers
- Operate within the specified temperature and humidity ranges
- Recommended for fixed installations in industrial and environmental monitoring projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Measured Parameters | Wind speed, Wind direction, Air temperature, Relative humidity, Barometric pressure |
| Wind Speed Principle | Ultrasonic |
| Wind Speed Range | 0...60 m/s |
| Wind Speed Accuracy | ±0.3 m/s; 5% (0.02...35 m/s); 10% (>35 m/s) |
| Wind Direction Range | 0...360° |
| Wind Direction Accuracy | ±3° (>1 m/s) |
| Temperature Range | -40...+80 °C |
| Temperature Accuracy | ±0.3 °C (-35...+60 °C); ±0.5 °C elsewhere |
| Humidity Range | 0...100% RH |
| Humidity Accuracy | ±3% RH |
| Dew Point | Calculated |
| Pressure Range | 600...1100 hPa |
| Pressure Accuracy | ±0.5 hPa @ 25 °C |
| Output | RS485, Modbus-RTU |
| Power Supply | 12...30 V DC |
| Power Consumption | 13 mA @ 12 V DC |
| Dimensions | Ø 126 × H 170 mm |
| Weight | 0.7 kg |
| Housing Material | Plastic |
| Protection | IP65 |
| Operating Temperature | -40...+70 °C |
| Operating Humidity | 5...100% RH |
| Brand | LSI-Lastem |
