The Orbisphere 6110 Total O₂/CO₂ Package Analyzer & Installation Kit is a comprehensive analytical system for non-destructive final package analysis of oxygen and carbon dioxide in sealed beverage containers. It combines precise gas headspace and dissolved gas measurement technologies with a complete installation kit for immediate deployment.
On order

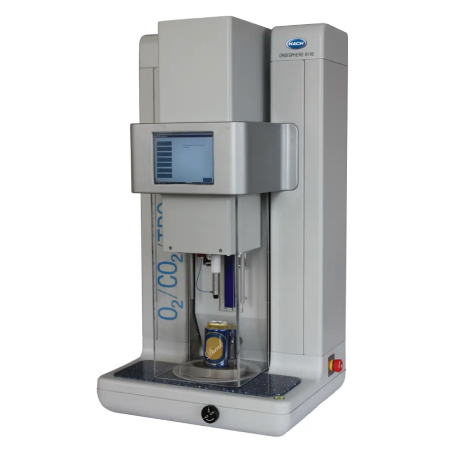

DG6110-SYS Orbisphere 6110 Total O₂/CO₂ Package Analyzer & Installation Kit
DG6110-SYS
Orbisphere
Description
The Orbisphere 6110 Total O₂/CO₂ Package Analyzer & Installation Kit (DG6110-SYS) is an advanced analytical instrument designed for final package gas analysis in the beverage industry and related quality control laboratories. It measures total package oxygen, headspace oxygen, dissolved oxygen, and carbon dioxide without removing product from the container, ensuring non-destructive testing of cans, PET bottles, and glass bottles. The system includes all components required for installation and operation.
Features and Benefits of DG6110-SYS
- Non-destructive total package O₂ and CO₂ analysis without sample preparation.
- Integrated touchscreen interface for intuitive operation and data display.
- Reliable gas extraction and piercing system adaptable to all container types.
- Compensation of CO₂ results based on nitrogen content for accurate measurements.
- Complete installation kit included for immediate deployment.
- Improves process control and final product quality in production environments.
Usage and Handling
Install the Orbisphere 6110 analyzer on a suitable lab bench or process line table capable of supporting its weight. Connect power (100–240 VAC) and configure Ethernet/USB connectivity as needed. Use the included piercing station and sample holders to position and analyze sealed containers. Follow manufacturer calibration and maintenance procedures, including periodic verification of measurement accuracy and replacement of consumables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article number | DG6110-SYS |
| Product type | Total O₂/CO₂ package analyzer with installation kit |
| Measurement parameter | Total package O₂, headspace O₂, dissolved O₂, CO₂ |
| Oxygen (O₂) range | 1 ppb to 12 ppm |
| Carbon dioxide (CO₂) range | 0.75 – 5 v/v or 1.5 – 10 g/kg |
| Typical analysis time | ~4 minutes |
| Display | Digital color touchscreen |
| Power supply | 100–240 VAC, 50/60 Hz |
| Communication | 1 × Ethernet, 1 × USB-A |
| Enclosure rating | IP20 |
| Operating temperature | 0 – 40 °C |
| Package temperature | -2 – 30 °C |
| Weight | 55 kg |
| Dimensions (H×W×D) | 942 × 540 × 537 mm |
| Compliance | IEC/UL/CSA 61010-1, EN61326, IEC/UL/CSA 60825-1, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC |
| Installation kit included | Piercing station, sample holders, tubing, accessories |
| Manufacturer | Hach |
| Brand | Orbisphere |
