Electrochemical ozone sensor in stainless steel housing with smart capability and high pressure tolerance up to 40 bar. Designed for inline ozone measurement in ultrapure water and beverage sanitisation processes.
Description

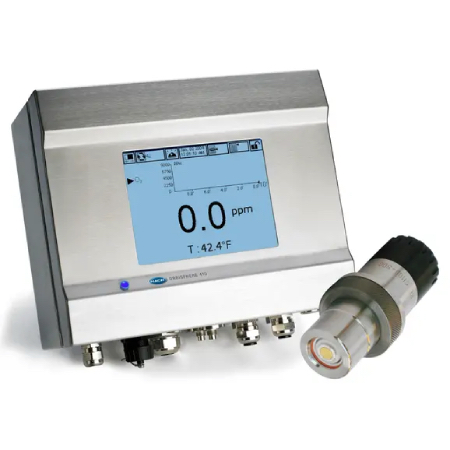

The Orbisphere C1100 Ozone sensor (C1100-S00) is an electrochemical ozone (O₃) sensor with a robust stainless steel housing capable of withstanding process pressures up to 40 bar. It incorporates smart sensor technology to store calibration data and support traceable results. The C1100 is suitable for inline ozone measurement in ultrapure water systems and beverage sanitising phases without requiring extensive setup or skilled operators. Platinum guard ring technology provides a true zero, drift-free measurement and easy air calibration.
Features and Benefits of C1100-S00
- Electrochemical ozone sensor with smart capability — C1100-S00.
- Stainless steel housing for rugged use up to 40 bar process pressure.
- True zero ozone measurement with platinum guard ring, reducing false signals.
- Quick and simple air calibration with high accuracy performance.
- Low maintenance with patented cartridge system for fast membrane replacement.
- Suitable for ultrapure water and beverage production line sanitisation.
Usage and Handling
Install the C1100 ozone sensor in an appropriate flow chamber or inline process connection with a compatible sensor controller and cable (sold separately). Connect to the analytical controller per manufacturer instructions. Use the air calibration feature for easy calibration without external standards. Periodically verify and replace membrane cartridges as part of preventive maintenance. Follow Hach guidelines for storage and safe handling prior to installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article number | C1100-S00 |
| Product type | Electrochemical ozone sensor |
| Measured parameter | Ozone (O₃) |
| Technology | Electrochemical (EC), smart sensor |
| Housing material | Stainless steel |
| Pressure rating | Up to 40 bar |
| Measuring range | 0 ppb – 50 ppm O₃ |
| Lower limit of detection | ~0.6 ppb |
| Accuracy | ±0.4 ppb or ±5 % of reading, whichever is greater |
| Response time | ~30 s |
| Flow rate (typical) | ~350 mL/min |
| Operating temperature | -5 – 45 °C |
| Maximum temperature | -5 – 100 °C |
| Compatible controllers | Orbisphere gas/ozone controllers |
| Included | Sensor only; controller, cable, flow chamber not included |
| Manufacturer | Hach |
