Purestream PS-500 Ballast Water Treatment System

PS-500 Atlantium Technologies

Ballast Water Management System (BWMS) performs innovative dose-control, real-time monitoring and sea water, fresh water and brackish water treatment.

Add to bag

PS-500 Ballast Water Treatment System provides safe and reliable water treatment for vessels. During ballasting, the water flows through 20-micron screen filter that removes microorganisms and particles. After that sea water, fresh water or brackish water passes through medium pressure UV system that provides protection against a wide range of microorganisms, viruses and bacteria. During de-ballasting, the filter is automatically bypassed and water flows through the system for a second-pass treatment before discharge. PS-500 accommodates the flow rate of up to 500 m³/hr. PS-500 Ballast Water Treatment System is equipped with one ballasts electrical cabinet. Purestream system features user-friendly interface that controls UVT, adjusts the UV dose and monitors the UV output of each UV lamp. Purestream One-Pass approach reduces the overall energy consumption by 50% and increases the system reliability. PS-500 Ballast Water Treatment System nominal energy consumption is 63 kW.

Purestream PS-500 Ballast Water Treatment System includes:

  • Purestream UV unit
  • Filter

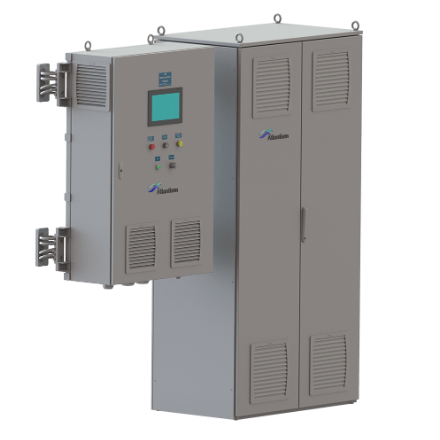

  • Main control cabinet
  • Ballast cabinet

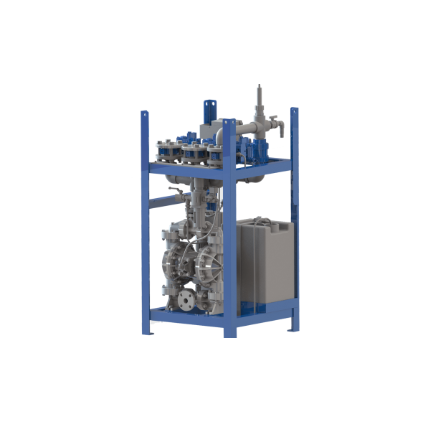

  • CIP unit

Service & Support

IWA provides PS-500 system maintenance in the Baltic States and Eastern Europe. Spare parts for PS-500 Ballast Water Treatment System (such as UV lamps and filter elements) are available on our website.

Brand Atlantium Technologies
Capacity range (m³/h) ≤ 500
Filter lenght (m) 0.73
Filter width (m) 0.72
Filter height (m) 1.28
Filter quantity 1
Filter weight (kg) 600
UV Unit lenght (m) 1.63
UV Unit width (m) 1.29
UV Unit height (m) 0.55
UV Unit weight (kg) 484
Ballasts Electrical Cabinet(s) lenght (m) 0.7
Ballasts Electrical Cabinet(s) width (m) 1.0
Ballasts Electrical Cabinet(s) height (m) 2.2
Ballasts Electrical Cabinet(s) quantity 1
Ballasts Electrical Cabinet(s) weight (kg) 320
Power Consumption Nominal (kW) 63
Total Weight (kg) 1404
