Ballast Water Management System (BWMS) performs innovative dose-control, real-time monitoring and sea water, fresh water and brackish water treatment.
PS-300 Ballast Water Treatment System provides vessels with cost-efficient and environmentally friendly water treatment. PS-300 is equipped with revolutionary 20-micron filter and patented medium pressure UV system. PS-300 Ballast Water Treatment System operates at minimum retention times (≤ 24 hours) following treatment in toughest water conditions with UV transmittance as low as 40% UVT. Purestream system accommodates the flow rate of up to 350 m³/hr. The system is equipped with one ballasts electrical cabinet. PS-300 automatically adjusts the UV dose, controls the water flow and monitors the UV output of each UV lamp. Purestream One-Pass treatment is the only UV-based BWMS technology that treats the ballast water in a single pass, saving time and energy. The nominal energy consumption of the PS-300 Ballast Water Treatment System is 36 kW.

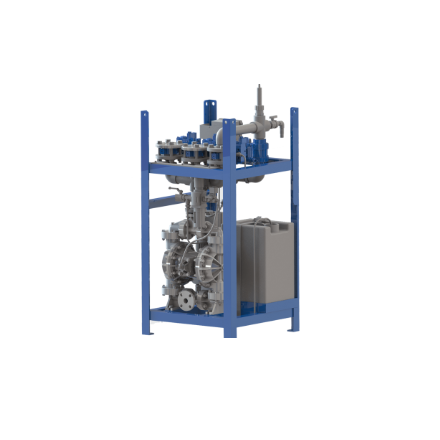

Purestream PS-300 Ballast Water Treatment System includes:
- Purestream UV unit
- Filter

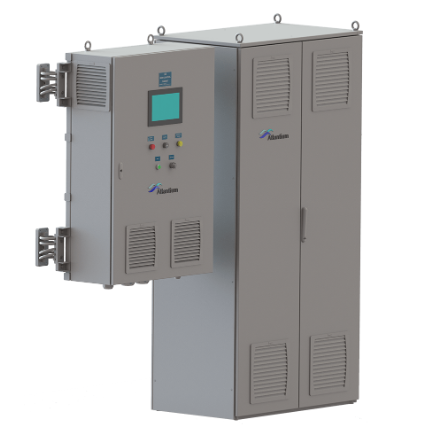

- Main control cabinet
- Ballast cabinet
- CIP unit
Service & Support
IWA provides PS-300 system maintenance in the Baltic States and Eastern Europe. Spare parts for PS-300 Ballast Water Treatment System (such as UV lamps and filter elements) are available on our website.
| Brand | Atlantium Technologies |
| Capacity range (m³/h) | ≤ 350 |
| Filter lenght (m) | 0.72 |
| Filter width (m) | 0.62 |
| Filter height (m) | 1.01 |
| Filter quantity | 1 |
| Filter weight (kg) | 495 |
| UV Unit lenght (m) | 1.04 |
| UV Unit width (m) | 0.96 |
| UV Unit height (m) | 0.41 |
| UV Unit weight (kg) | 170 |
| Ballasts Electrical Cabinet(s) lenght (m) | 0.7 |
| Ballasts Electrical Cabinet(s) width (m) | 1.0 |
| Ballasts Electrical Cabinet(s) height (m) | 2.2 |
| Ballasts Electrical Cabinet(s) quantity | 1 |
| Ballasts Electrical Cabinet(s) weight (kg) | 320 |
| Power Consumption Nominal (kW) | 36 |
| Total Weight (kg) | 985 |
