Ballast Water Management System (BWMS) performs innovative dose-control, real-time monitoring and sea water, fresh water and brackish water treatment.
PS-200 supplies vessels with cost-efficient and reliable water treatment. PS-200 Ballast Water Treatment System is equipped with one 20-micron filter that purifies sea water, fresh water and brackish water from microorganisms and particles. PS-200 UV system inactivates microorganisms, viruses and bacteria in the toughest water conditions. The maximum flow rate of the PS-200 Ballast Water Treatment System is 250 m³/hr. PS-200 is equipped with one ballasts electrical cabinet. Purestream system monitors UVT and adjusts the UV dose according to the IMO and USCG regulatory compliance. Purestream One-Pass approach provides water treatment in a single pass, significantly reducing the overall power consumption. PS-200 Ballast Water Treatment System nominal power consumption is 22 kW.
Purestream PS-200 Ballast Water Treatment System includes:
- Purestream UV unit
- Filter

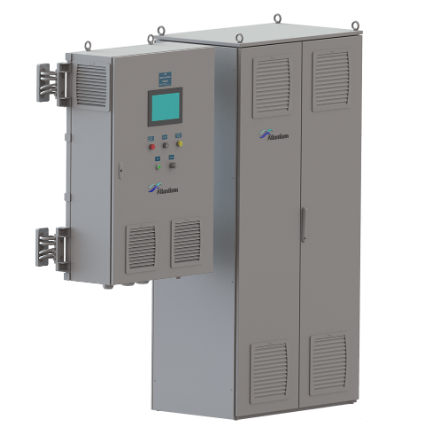

- Main control cabinet
- Ballast cabinet
- CIP unit
Service & Support
IWA provides PS-200 system maintenance in the Baltic States and Eastern Europe. Spare parts for PS-200 Ballast Water Treatment System (such as UV lamps and filter elements) are available on our website.
| Brand | Atlantium Technologies |
| Capacity range (m³/h) | ≤ 250 |
| Filter lenght (m) | 0.72 |
| Filter width (m) | 0.62 |
| Filter height (m) | 1.01 |
| Filter quantity | 1 |
| Filter weight (kg) | 495 |
| UV Unit lenght (m) | 1.04 |
| UV Unit width (m) | 0.96 |
| UV Unit height (m) | 0.41 |
| UV Unit weight (kg) | 170 |
| Ballasts Electrical Cabinet(s) lenght (m) | 0.7 |
| Ballasts Electrical Cabinet(s) width (m) | 1.0 |
| Ballasts Electrical Cabinet(s) height (m) | 2.2 |
| Ballasts Electrical Cabinet(s) quantity | 1 |
| Ballasts Electrical Cabinet(s) weight (kg) | 320 |
| Power Consumption Nominal (kW) | 22 |
| Total Weight (kg) | 985 |
