Purestream PS-1200 Ballast Water Treatment System

PS-1200 Atlantium Technologies

Ballast Water Management System (BWMS) performs innovative dose-control, real-time monitoring and sea water, fresh water and brackish water treatment.

Add to bag

PS-1200 Ballast Water Treatment System supplies ships with chemical-free and reliable water disinfection. PS-1200 is equipped with two 20-micron filters that remove microorganisms and particles from the water stream. PS-100 UV system provides protection against a wide range of microorganisms, viruses and bacteria in the toughest water conditions meeting IMO and USCG Type Approval. PS-1200 accommodates the flow rate of up to 1200 m³/hr. PS-1200 Ballast Water Treatment System is equipped with two ballasts electrical cabinets. Purestream system features user-friendly interface for continuous and accurate real-time dose monitoring and automated control. Purestream One-Pass treatment requires operation of the system only during ballasting. The aforementioned approach reduces the overall power consumption by 50% and increases the system reliability. The nominal power consumption of the PS-1200 Ballast Water Treatment System is 88 kW.

Purestream PS-1200 Ballast Water Treatment System includes:

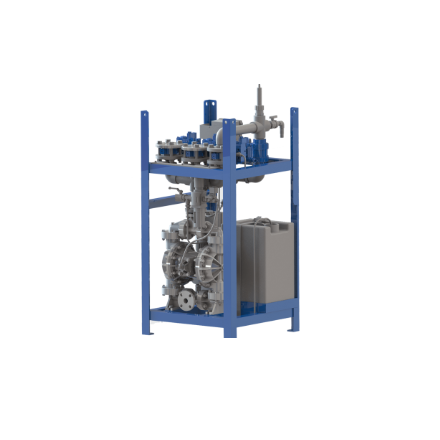

  • Purestream UV unit
  • Filter

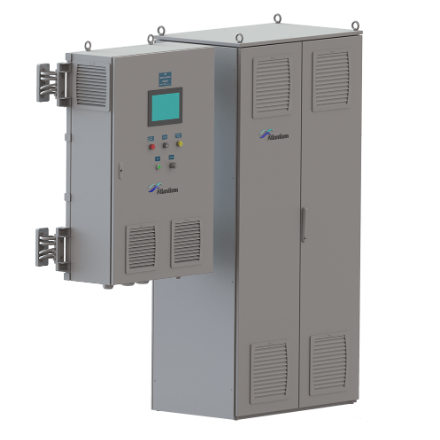

  • Main control cabinet
  • Ballast cabinet
  • CIP unit

Service & Support

IWA provides PS-1200 system maintenance in the Baltic States and Eastern Europe. Spare parts for PS-1200 Ballast Water Treatment System (such as UV lamps and filter elements) are available on our website.

Brand Atlantium Technologies
Capacity range (m³/h) ≤ 1200
Filter lenght (m) 0.73
Filter width (m) 0.72
Filter height (m) 1.28
Filter quantity 2
Filter weight (kg) 600
UV Unit lenght (m) 1.63
UV Unit width (m) 1.39
UV Unit height (m) 0.66
UV Unit weight (kg) 550
Ballasts Electrical Cabinet(s) lenght (m) 0.7
Ballasts Electrical Cabinet(s) width (m) 1.0
Ballasts Electrical Cabinet(s) height (m) 2.2
Ballasts Electrical Cabinet(s) quantity 2
Ballasts Electrical Cabinet(s) weight (kg) 320
Power Consumption Nominal (kW) 88
Total Weight (kg) 2390
