Purestream PS-100 Ballast Water Treatment System

PS-100 Atlantium Technologies

Ballast Water Management System (BWMS) performs innovative dose-control, real-time monitoring and sea water, fresh water and brackish water treatment.

Add to bag

PS-100 Ballast Water Treatment System provides ships with non-chemical and environmentally friendly water disinfection. 20-micron filter removes microorganisms and particles from the water flow. PS-100 UV system inactivates microorganisms, viruses and bacteria in the harshest water conditions meeting IMO and USCG Type Approval. PS-100 accommodates the flow rate of up to 150 m³/hr. PS-100 Ballast Water Treatment System is equipped with one ballasts electrical cabinet. Purestream system features user-friendly interface that provides real-time dose monitoring and advanced control. Purestream One-Pass approach provides sea water, fresh water and brackish water treatment in a single pass, significantly reducing the overall energy consumption. The nominal energy consumption of the PS-100 Ballast Water Treatment System is 14.5 kW.

Purestream PS-100 Ballast Water Treatment System includes:

  • Purestream UV unit
  • Filter

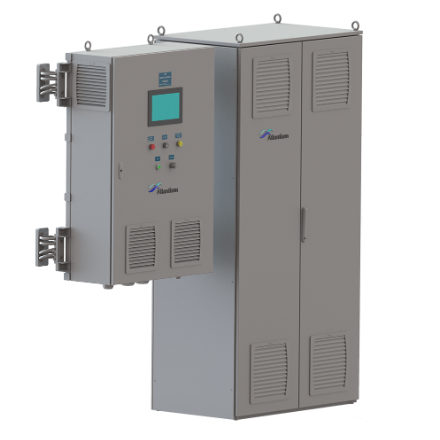

  • Main control cabinet
  • Ballast cabinet
  • CIP unit

Service & Support

IWA provides PS-100 system maintenance in the Baltic States and Eastern Europe. Spare parts for PS-100 Ballast Water Treatment System (such as UV lamps and filter elements) are available on our website.

Brand Atlantium Technologies
Capacity range (m³/h) ≤ 150
Filter lenght (m) 0.72
Filter width (m) 0.62
Filter height (m) 1.01
Filter quantity 1
Filter weight (kg) 495
UV Unit lenght (m) 1.04
UV Unit width (m) 0.96
UV Unit height (m) 0.41
UV Unit weight (kg) 170
Ballasts Electrical Cabinet(s) lenght (m) 0.7
Ballasts Electrical Cabinet(s) width (m) 1.0
Ballasts Electrical Cabinet(s) height (m) 2.2
Ballasts Electrical Cabinet(s) quantity 1
Ballasts Electrical Cabinet(s) weight (kg) 320
Power Consumption Nominal (kW) 14.5
Total Weight (kg) 985
