Multi-channel process controller for electrochemical oxygen (O₂) and thermal conductivity carbon dioxide (CO₂) sensors. Wall-mount controller with universal AC power supply, analog outputs, and external pressure compensation for comprehensive gas process monitoring.
On order
510AD0/W1C0P000 Orbisphere 510 Controller O₂ (EC), CO₂ (TC), Wall Mount, 100–240 VAC, 0/4–20 mA, External Pressure
510AD0/W1C0P000
Orbisphere
Description

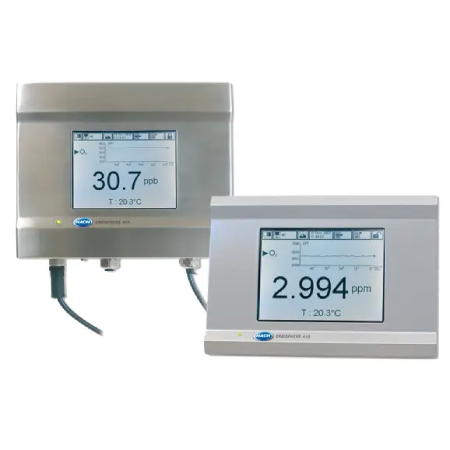

The Orbisphere 510 Controller O₂ (EC), CO₂ (TC) (article number 510AD0/W1C0P000) is a multi-channel process controller designed for simultaneous monitoring of electrochemical oxygen and thermal conductivity carbon dioxide sensors. The controller supports wall-mount installation and operates on universal 100–240 VAC power. It offers configurable analog outputs and an external pressure sensor input for compensated measurement. This controller platform provides advanced process control, flexible communication, and data management for laboratory and industrial environments.
Advantages of 510AD0/W1C0P000
- Multi-parameter controller for dissolved oxygen (O₂) and carbon dioxide (CO₂) sensors — 510AD0/W1C0P000.
- Wall-mount design suitable for fixed installation in process areas and labs.
- Universal 100–240 VAC power support for international use.
- 0/4–20 mA analog outputs for integration with control systems.
- External pressure sensor input to improve measurement accuracy.
- Integrated colour touchscreen and intuitive user interface with strong data storage and diagnostics.
Usage and Handling
Install the Orbisphere 510 controller on a vertical wall surface with secure mounting hardware. Connect compatible Orbisphere O₂ electrochemical and CO₂ thermal conductivity sensors to the controller channels. Ensure the power supply is connected to a 100–240 VAC source. Configure the analog output and communication interfaces (e.g., RS485, Ethernet or optional Profibus) per process requirements. Use the external pressure sensor connection for compensated gas measurements when required. Perform calibration and routine maintenance as specified in the manufacturer’s manuals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article number | 510AD0/W1C0P000 |
| Product type | Multi-channel controller |
| Measured parameters | Oxygen (O₂) electrochemical, Carbon dioxide (CO₂) thermal conductivity |
| Sensor technology | EC (O₂), TC (CO₂) |
| Mounting type | Wall mount |
| Power supply | 100–240 VAC |
| Analog outputs | 0/4–20 mA |
| External pressure input | Supported |
| Communication | RS485, Ethernet; optional Profibus |
| User interface | Colour TFT touchscreen |
| Data storage | Up to 10 000 measurements, operator actions and calibration history |
| Compatibility | Orbisphere O₂ and CO₂ sensors |
| Applications | Process monitoring, laboratory analysis, quality control |
| Manufacturer | Hach |
| Brand | Orbisphere |
