The Orbisphere 31290TC is a thermal conductivity (TC) hydrogen sensor with nitrogen purge, protection cap and external temperature sensor adapter. It enables direct, precise measurement of hydrogen content in gas or liquid samples at pressures up to 20 bar for industrial process and ultrapure water monitoring.
On order

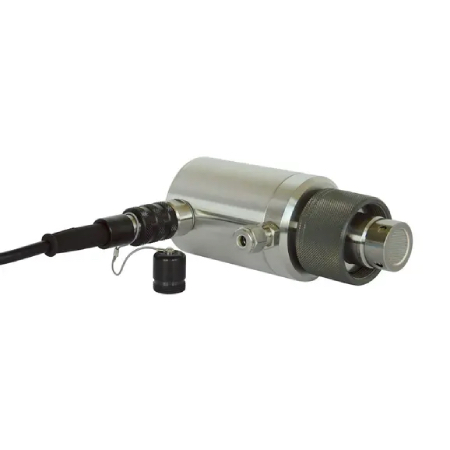

31290TC Orbisphere Hydrogen (H₂) TC Sensor with Nitrogen Purge, Protection Cap, External Temperature Sensor (20 bar)
31290TC
Orbisphere
Description
The Orbisphere Hydrogen (H₂) TC Sensor (Part Number 31290TC) is a thermal conductivity sensor designed for direct measurement of hydrogen in gaseous and liquid samples up to a sample pressure of 20 bar. The sensor incorporates a nitrogen purge connection, a protective cap and an external temperature sensor adaptor to support stable and accurate hydrogen analysis. Its rugged design tolerates harsh plant environments and frequent operation cycles.
Advantages 31290TC
- Unique thermal conductivity (TC) sensor design for selective H₂ measurement
- Nitrogen purge connection for sample conditioning
- External temperature sensor adaptor for improved accuracy
- Protective cap enhances durability in industrial settings
- Suitable for both gas and liquid sample measurement
- Handles sample pressures up to 20 bar
Usage Instructions
Install the 31290TC sensor into the appropriate Orbisphere controller or analyzer system following Hach’s installation guidelines. Connect a compatible nitrogen purge line and ensure correct sealing with the protection cap. The external temperature sensor (ordered separately) should be fitted to provide temperature compensation. Calibration should be performed using certified hydrogen calibration gas. Sensor cable and external temperature sensor must be ordered separately according to manufacturer specifications.
Technical Specifications
| Parameter | Specification |
| Measured Substance | Hydrogen (H₂) |
| Sensor Type | Thermal Conductivity (TC) |
| Purge Connection | Nitrogen |
| Protection Cap | Included |
| External Temperature Sensor Adapter | Included |
| Maximum Sample Pressure | 0 – 20 bar |
| Installation | Inline or flow chamber |
| Operating Media | Gaseous and liquid samples |
| Calibration | Certified hydrogen gas references |
| Included with Sensor | Sensor only; external temperature sensor, sensor cable, flow chamber or process connection ordered separately |
| Brand | Orbisphere |
