The EBI 20-T1 Set is an all-in-one starter solution designed for the continuous documentation and monitoring of temperature in the food, pharmaceutical, and logistics sectors. This cost-effective package includes the essential hardware and software needed to maintain quality control in cold storage, transport containers, and process environments, ensuring compliance with strict safety standards.

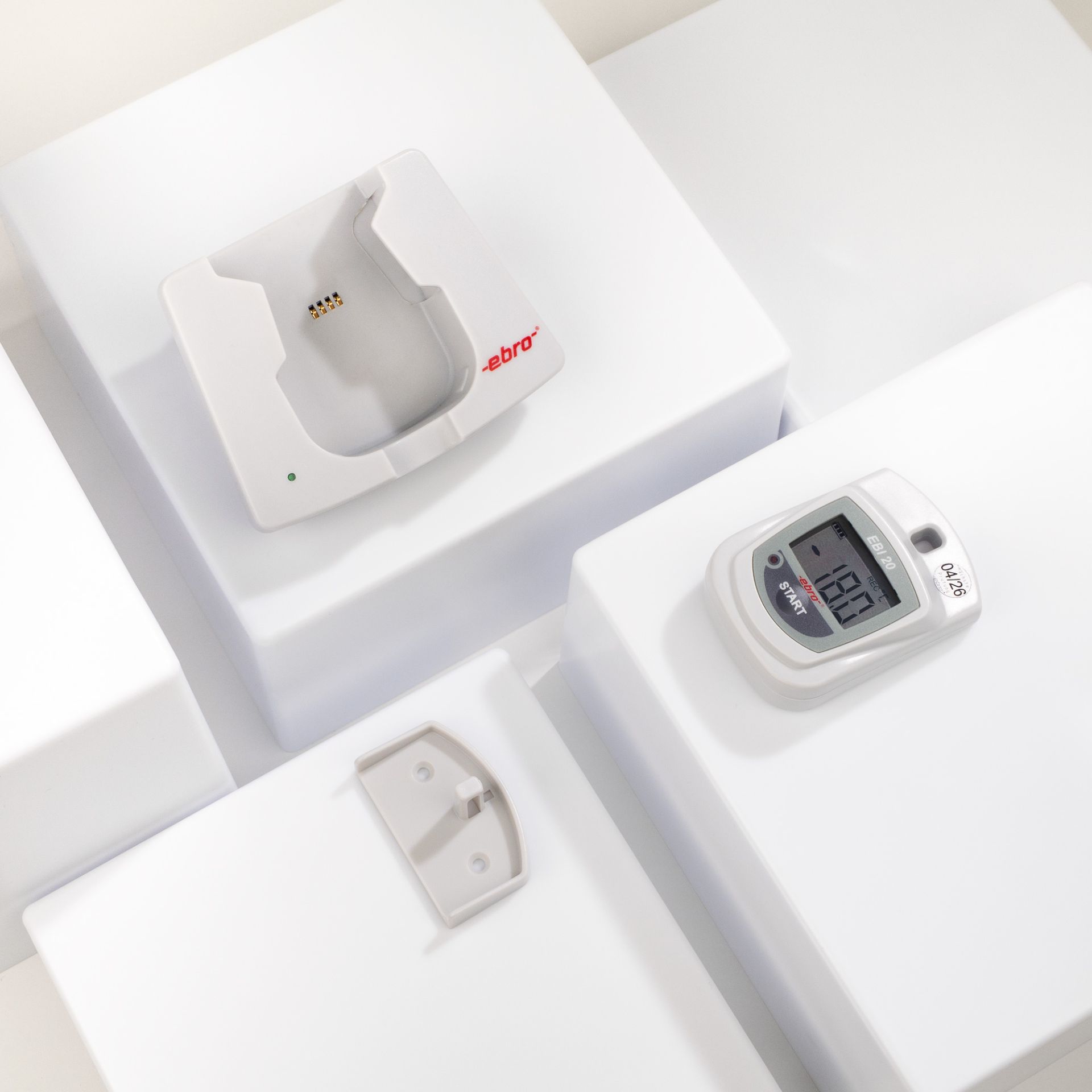

The EBI 20-T1 Set (Part No. 1601-0046) provides a complete digital recording system that operates independently of a mains connection. The kit features the EBI 20-T1 logger, which utilizes an internal NTC sensor to capture precise temperature data. With a massive memory capacity of 40,000 measurements, it is ideal for long-term monitoring of refrigerated rooms and deep-freeze displays. The included EBI 20-IF interface and Winlog.basic software allow for quick programming of measurement intervals and easy data export to Excel or PDF formats. Housed in a robust ABS casing with an IP67 waterproof rating, this logger is fully compliant with DIN EN 12830 and HACCP requirements, making it a reliable choice for professional cold chain management.
Advantages
- Ready-to-Use Kit: Includes the data logger, interface, USB cable, and evaluation software for immediate deployment.
- High Storage Capacity: Records up to 40,000 data points, allowing for extensive monitoring periods without data loss.
- Visual Alarm System: Features a red LED that flashes immediately if pre-set temperature limits are exceeded.
- Excellent Battery Life: The user-replaceable 3V lithium battery lasts approximately 24 months (at a 15-minute measurement interval).
- Waterproof Protection: The IP67-rated housing ensures the device remains functional even in wash-down areas or during transport in humid conditions.
- Clear Digital Display: Shows current temperature readings as well as Min/Max values directly on the logger for instant verification.
Instructions for use
The EBI 20-T1 Set is designed for intuitive setup and operation via a PC. Preparation: Install the Winlog.basic software and connect the EBI 20-IF interface to your PC using the USB cable. Place the logger into the interface slot to program your desired start time and measurement interval (from 1 minute to 24 hours). Note: Once programmed, place the logger in the area to be monitored. To retrieve data, return the logger to the interface and use the software to download the recorded values. The software will automatically generate a tabular or graphical report of the temperature history for your documentation.
Technical specifications
| Catalogue number | 1601-0046 |
| Brand | ebro® (Xylem) |
| Measuring Range | -30 °C to +70 °C (-22 °F to +158 °F) |
| Accuracy | ±0.5 °C (-20 °C to +40 °C); ±0.8 °C for remaining range |
| Resolution | 0.1 °C |
| Memory | 40,000 measurements |
| Protection Class | IP67 |
| Battery Type | 3V Lithium (CR 2450), user-replaceable |
| Dimensions | 69 x 48 x 22 mm |
Available packaging options
| 1601-0046 | EBI 20-T1 Set (Logger, Interface, Software, USB Cable) |
| Brand | Ebro |
