The ebro TPN 611-3m is an ultra-slim, extended-length thermocouple wire probe designed for high-precision temperature monitoring in air and restricted technical environments. Featuring a specialized glass and silk braid insulation and an extra-long 3-meter reach, this probe is optimized for applications requiring minimal cross-sections and long-distance sensor placement, such as in large climate chambers, industrial ovens, or complex machinery diagnostics.
On order

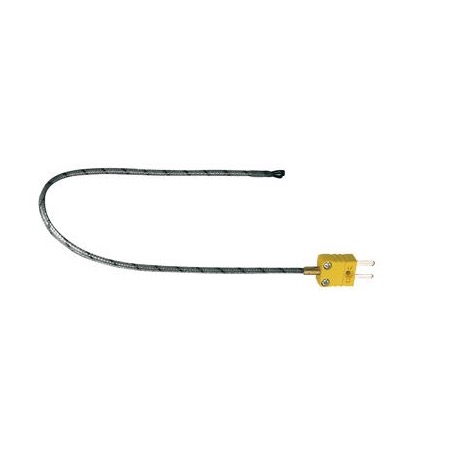

1343-0800-0100 TPN 611-3m Glass/Silk Insulated Wire Probe (SMP), Ebro
1343-0800
Ebro
The TPN 611-3m (Part No. 1343-0800-0100) is a high-performance Type K thermocouple wire probe characterized by its extremely small external dimensions of only 0.8 x 1.2 mm. The extended 3-meter long lead consists of a bare thermopile protected by a high-quality glass/silk braid insulation, offering superior flexibility and thermal stability in tight spaces. This model is equipped with a standard SMP connection (yellow subminiature plug), ensuring full compatibility with a wide range of ebro measurement devices, including the TFN 520-SMP, TFN 530-SMP, TFI series, and EBI 40 multi-channel data loggers. The probe is specifically engineered to measure both ambient air and surface temperatures in technical scenarios where standard probes cannot be installed due to distance or spatial constraints.
Advantages
- Extended 3m Reach: The 3-meter cable length allows for measurement at significant distances from the handheld device or data logger, ideal for large-scale equipment.
- Ultra-Slim Profile: With a cross-section of just 0.8 x 1.2 mm, this probe can be guided through the smallest gaps, door seals, or between electronic components.
- High Compatibility: Features a universal SMP connector for seamless integration with ebro TFN, TFI, and EBI 40-TC series instruments.
- Specialized Insulation: The glass/silk braid provides excellent heat resistance and flexibility compared to standard plastic-coated thermocouple wires.
- Versatile Monitoring: Designed to provide accurate readings for both ambient air temperatures and contact surfaces in complex technical setups.
- Reliable Precision: Accuracy exceeds the requirements of DIN EN 60584, Class 2, providing dependable data for industrial quality control and process monitoring.
Technical specifications
| Catalogue number | 1343-0800-0100 (TPN 611-3m) |
| Sensor type | Type K Thermocouple (SMP connection) |
| Measurement variables | Temperature (Air and Surfaces) |
| Response time (t99) | 25 s (in air at 0.2 m/s) |
| Accuracy | Exceeds DIN EN 60584, Class 2 |
| Dimensions | L = 3 m; External 0.8 x 1.2 mm |
| Insulation | Glass/Silk braid |
| Brand | Ebro |
