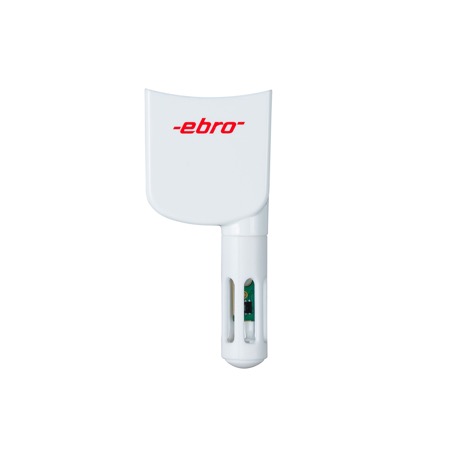

The ebro TPH 500 is a high-precision, external capacitive humidity and temperature probe specifically designed for use with the EBI 300 TH USB data logger. It provides a reliable solution for the continuous monitoring of relative humidity and ambient temperature in warehouses, during transport, and within climate-controlled chambers where air quality documentation is critical.
The TPH 500 (Part No. 1341-6337) is a sophisticated dual-parameter sensor that monitors both relative humidity (rH) and temperature. Utilizing an advanced capacitive humidity sensor, it delivers high-accuracy readings with a precision of ±2% rH in the most common range of 10% to 90% rH. This probe is an essential accessory for the EBI 300 TH, allowing the data logger to capture environmental conditions in sensitive storage areas or transit vehicles. To ensure immediate compliance with industrial quality standards, the probe is supplied with a factory calibration certificate. Its modular design allows for the probe to be exchanged or recalibrated independently, ensuring the long-term accuracy and cost-effectiveness of the monitoring system.
Advantages
- High Humidity Precision: Features a capacitive sensor with ±2% accuracy (at +25 °C), making it suitable for pharmaceutical and food-grade storage validation.
- Dual-Parameter Monitoring: Simultaneously records temperature and relative humidity, providing a complete overview of the climate conditions.
- Factory Calibrated: Includes a factory calibration certificate, facilitating quick integration into ISO or HACCP-regulated quality management systems.
- Optimized for Transport: Rugged enough to handle the vibrations and fluctuations typical of logistics and supply chain environments.
- Long-Term Stability: The capacitive sensing element is designed for minimal drift, ensuring reliable data over extended monitoring periods.
- Plug-and-Play Integration: Specifically calibrated for the ebro EBI 300 TH data logger for seamless data processing and reporting.
Technical specifications
| Catalogue number | 1341-6337 (TPH 500) |
| Sensor type | Capacitive (Humidity) / NTC (Temperature) |
| Compatibility | ebro EBI 300 TH Data Logger |
| Humidity Accuracy | ±2% rH (10%...90% rH at +25 °C); ±4% rH remaining range |
| Temperature Accuracy | ±0.5 °C (+0 °C…+60 °C); ±0.8 °C remaining range |
| Certificate | Factory calibration certificate included |
| Measurement variables | Temperature, Relative Humidity |
| Brand | Ebro |
