The ebro TPN 912 is a high-performance magnetic surface probe designed for precision temperature monitoring on small ferromagnetic surfaces. Featuring a specialized coating and a compact contact area, it ensures consistent thermal contact and high chemical resistance in demanding industrial and laboratory environments.

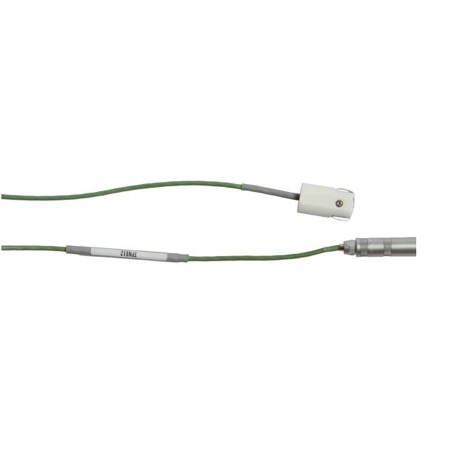

The TPN 912 (Part No. 1341-0644) is a professional Type K thermocouple probe engineered for hands-free measurement. It features a compact 13 x 14 mm contact surface, making it ideal for smaller components or areas with limited space. A unique feature of this probe is its sensor protection: the thermocouple is coated with a Polyimide film and a PTFE film, providing excellent durability and resistance to various chemicals and environmental factors. The integrated magnet provides the necessary contact pressure automatically, ensuring stable and repeatable measurements on steel or iron surfaces. The probe is equipped with a 1 m silicone cable and a high-quality Lemo connection, offering a rapid response time (t99 = 2.0 s) while exceeding the accuracy requirements of DIN EN 60584, Class 1.
Advantages
- Hands-Free Precision: The integrated magnet secures the probe to ferromagnetic surfaces, allowing for continuous monitoring without manual intervention.
- Enhanced Sensor Protection: The dual coating of Polyimide and PTFE films protects the thermocouple from corrosion and chemical wear.
- Compact Design: The small 13 x 14 mm contact area allows for precise temperature detection on small or crowded industrial components.
- Fast Response Time: A t99 time of 2.0 seconds ensures quick detection of thermal fluctuations, critical for process control.
- Superior Accuracy: Exceeds DIN EN 60584, Class 1 standards, providing reliable, laboratory-grade data for quality assurance.
- Robust Connection: The industrial-standard Lemo plug ensures a stable, noise-free signal transmission to the measurement device.
Technical specifications
| Catalogue number | 1341-0644 (TPN 912) |
| Sensor type | Type K Thermocouple (Polyimide/PTFE coated) |
| Measurement variable | Temperature (Surface) |
| Response time (t99) | 2.0 s |
| Accuracy | Exceeds DIN EN 60584, Class 1 |
| Contact surface | 13 x 14 mm |
| Cable type | 1 m Silicone cable with Lemo connection |
| Brand | Ebro |
