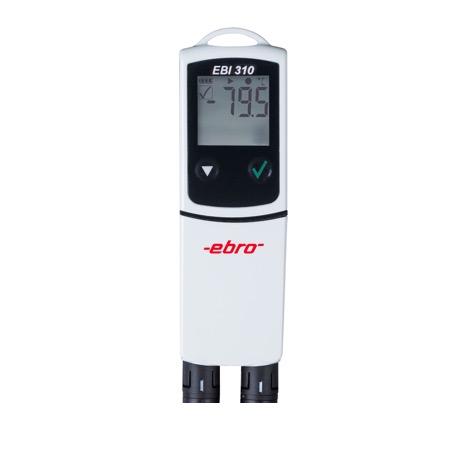

The ebro EBI 310 TX is a high-precision, multi-use PDF data logger designed for sophisticated temperature monitoring in the pharmaceutical, medical, and food industries. Featuring a two-channel adapter, it allows for the simultaneous monitoring of ambient conditions and extremely low or high temperatures via external probes, ensuring comprehensive cold chain documentation.
The EBI 310 TX (Part No. 1340-6339) is a versatile temperature logger that specializes in high-precision data acquisition. It features an internal Pt 1000 sensor for ambient monitoring and a dual-channel adapter for connecting external probes, enabling a massive external measurement range from -200 °C to +400 °C (depending on the probe type). One of its standout features is the automatic PDF generation; once connected to a USB port, the device immediately creates a tamper-proof report without the need for additional software. The logger has an expansive memory capacity of 120,000 readings and a robust IP65 protection rating, making it dust-tight and resistant to water jets. It is powered by a user-replaceable CR 2450 lithium battery and includes a factory calibration certificate, making it an ideal choice for GxP-compliant environments and highly regulated transport monitoring.
Advantages
- Dual-Channel Monitoring: Allows for the simultaneous recording of internal ambient temperature and external probe data, perfect for dry ice or oven applications.
- No Software Required: Automatic PDF report generation ensures easy data access on any computer with a USB port, facilitating global logistics.
- High Precision: Offers an accuracy of ±0.2 °C in the most critical range, ensuring the safety of sensitive vaccines, biologicals, and food products.
- Massive Data Storage: With a capacity of 120,000 measurement values, it is suitable for long-duration transport or permanent warehouse monitoring.
- Flexible Intervals: The measurement interval is fully configurable from 1 second up to 24 hours to suit specific monitoring requirements.
- Robust and Reliable: The IP65 housing and wide storage temperature range ensure the device remains functional even in harsh industrial conditions.
Technical specifications
| Catalogue number | 1340-6339 (EBI 310 TX) |
| Memory capacity | 120,000 measurement values |
| Sensor type | Pt 1000 (internal and external) |
| Measurement range (internal) | -30 °C ... +75 °C |
| Measurement range (external) | -200 °C ... +400 °C (probe dependent) |
| Accuracy | ±0.2 °C (-30 °C...+30 °C); ±0.5 °C for remaining range |
| Resolution | 0.1 °C |
| Measurement interval | 1 sec. to 24 hrs. |
| Protection class | IP65 |
| Dimensions | 111 x 33 x 14 mm |
| Battery | Lithium button cell (CR 2450), 3V |
| Brand | Ebro |
