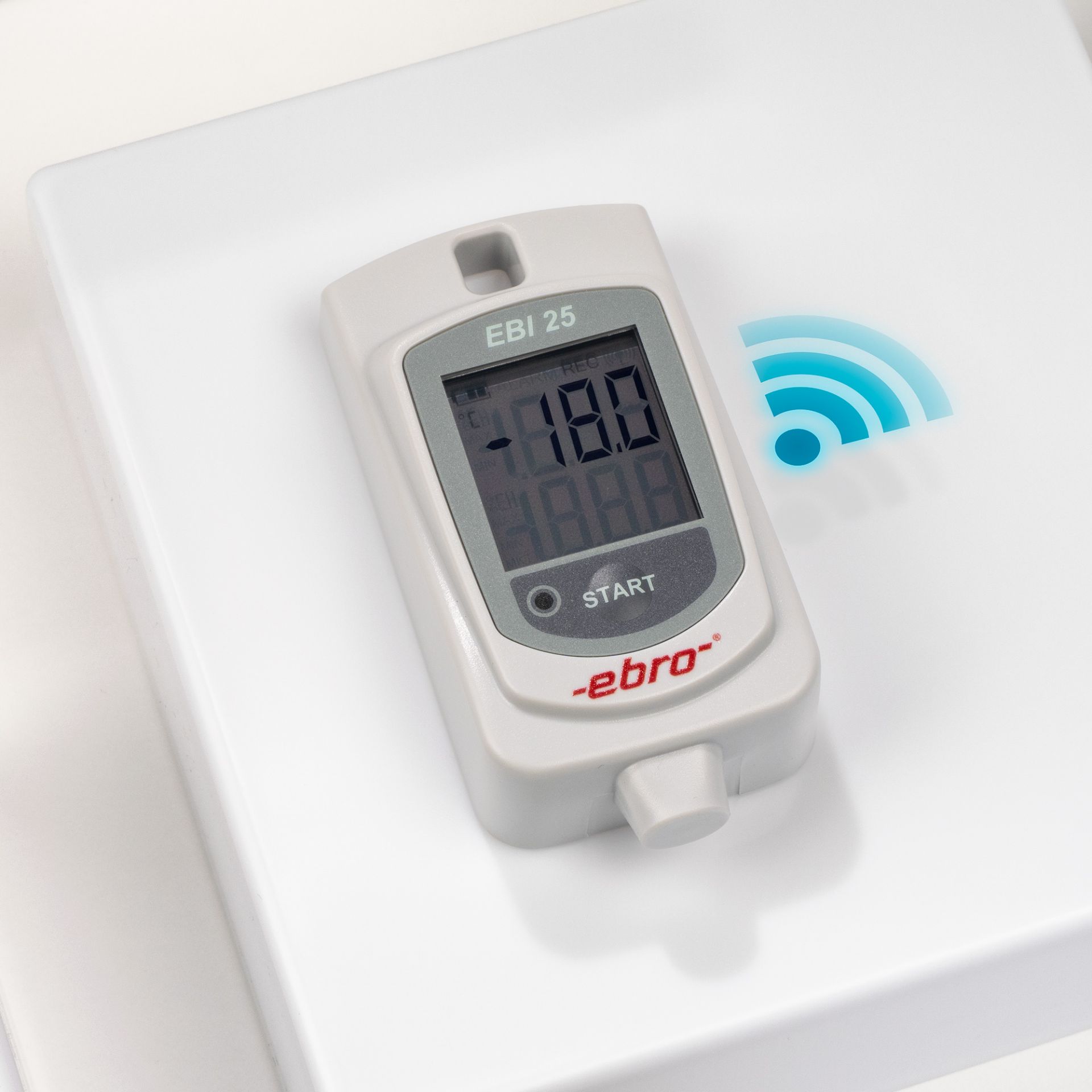

The EBI 25-T is a high-performance wireless temperature data logger designed for the continuous, real-time monitoring of storage rooms, cold chain logistics, and laboratory environments. By utilizing radio technology, this device enables automatic documentation and instant alarming, ensuring that temperature-sensitive goods—such as pharmaceuticals and perishable foods—are maintained within their required thermal limits.
The EBI 25-T (Part No. 1340-6200) features an internal NTC sensor for precise temperature tracking without the need for external probes. Operating on the 868 MHz radio frequency, it transmits data wirelessly to an IF 400 base station, which can then be monitored via PC or server using the Winlog.web or Winlog.wave software. This system provides a massive advantage over manual logging by offering automated reporting and immediate alerts via email or SMS if thresholds are breached. Housed in a durable ABS casing with an IP67 waterproof rating, the logger is built for long-term use in demanding environments like refrigerators, deep-freezers, and warehouses. It is fully compliant with HACCP and EN 12830, offering a secure and scalable digital solution for temperature documentation.
Advantages
- Real-Time Monitoring: Radio technology allows for continuous data transmission, enabling quick intervention before goods are lost.
- Wireless Freedom: Eliminates the need for manual data readout or complex wiring, with a transmission range of up to 500 meters in open fields.
- High Data Security: Features internal memory for 288 measurement values per channel to prevent data loss in the event of a temporary radio interruption.
- User-Friendly Display: The integrated LCD shows current readings as well as Min/Max values directly on the device for at-a-glance verification.
- Easy Maintenance: Powered by a standard 3.6 V lithium battery that is easily replaceable by the user and lasts up to 2 years.
- Scalable System: Up to 50 data loggers can be connected to a single IF 400 interface, making it suitable for both small clinics and large distribution centers.
Instructions for use
The EBI 25-T is designed to function as part of a wireless network. Preparation: Install the Winlog software and connect the IF 400 interface to your network or PC. Register the logger in the software by following the pairing instructions to establish a radio connection. Note: Mount the logger using the optional AG 152 wall bracket for optimal signal strength. Once active, the device will automatically record and transmit data at the pre-set interval (1 minute to 24 hours). If the device is used in a deep-freeze environment, ensure the signal strength is tested beforehand, as thick insulated walls can affect radio range. Clean the housing with a damp cloth; do not use abrasive chemicals that could damage the ABS plastic.
Technical specifications
| Catalogue number | 1340-6200 |
| Brand | ebro® (Xylem) |
| Measuring Range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Accuracy | ±0.5 °C (-20 °C to +40 °C); ±0.8 °C for remaining range |
| Resolution | 0.1 °C |
| Memory | 288 measurements (per channel) |
| Radio Frequency | 868 MHz |
| Protection Class | IP67 |
| Battery | 3.6 V Lithium, replaceable |
Available packaging options
| 1340-6200 | Individual EBI 25-T Wireless Temperature Logger |
